So. Trinity - Below Hyampom

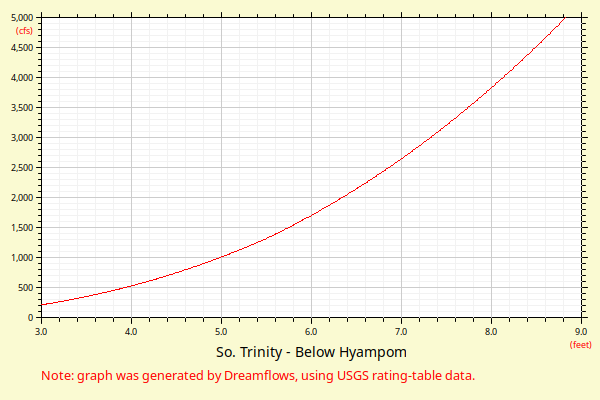

This rating table shows the relationship between gauge height and river flow for the USGS gauge on the South Fork Trinity below Hyampom. Dreamflows generated the graph and table using USGS supplied rating table data. NOTE: The rating table below was published Mar 8, 2007 and was valid only at that time. The relationship between gauge height and river flow may change over time and therefore the older the data, the less reliable it is likely to be. The graph shows the range of data of primary interest to boaters, while the numerical listing gives the full range of available data.

Flow (in cfs) - last revised Mar 8, 2007
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
4 64 85 110 139 172
5 208 247 289 335 385 434 484 536 603 667
6 741 813 894 971 1060 1140 1230 1320 1420 1510
7 1620 1720 1830 1940 2050 2160 2290 2400 2530 2660
8 2790 2910 3020 3140 3270 3390 3520 3640 3770 3910
9 4040 4180 4320 4460 4600 4750 4890 5040 5190 5350
10 5500 5660 5820 5980 6140 6310 6470 6640 6810 6990
11 7160 7340 7520 7700 7880 8070 8260 8440 8640 8830
12 9020 9220 9420 9620 9820 10000 10200 10400 10700 10900
13 11100 11300 11500 11700 12000 12200 12400 12600 12900 13100
14 13300 13600 13800 14000 14300 14500 14800 15000 15300 15500
15 15800 16000 16300 16500 16800 17000 17300 17600 17800 18100
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
16 18400 18700 18900 19200 19500 19800 20000 20300 20600 20900
17 21200 21500 21800 22100 22400 22700 23000 23300 23600 23900
18 24200 24500 24800 25100 25400 25700 26100 26400 26700 27000
19 27300 27700 28000 28300 28700 29000 29300 29700 30000 30300
20 30700 31000 31400 31700 32100 32400 32800 33100 33500 33800
21 34200 34600 34900 35300 35700 36000 36400 36800 37100 37500
22 37900 38300 38700 39000 39400 39800 40200 40600 41000 41400
23 41800 42200 42600 43000 43400 43800 44200 44600 45000 45400
24 45800 46200 46600 47000 47500 47900 48300 48700 49100 49600
25 50000 50400 50900 51300 51800 52200 52700 53100 53600 54000
26 54500 54900 55400 55900 56300 56800 57300 57700 58200 58700
27 59100 59600 60100 60600 61100 61500 62000 62500 63000 63500
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
28 64000 64500 65000 65500 66000 66500 67000 67500 68000 68500
29 69000

	Flow (in cfs) - last revised Mar 8, 2007
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
4						64	85	110	139	172
5	208	247	289	335	385	434	484	536	603	667
6	741	813	894	971	1060	1140	1230	1320	1420	1510
7	1620	1720	1830	1940	2050	2160	2290	2400	2530	2660
8	2790	2910	3020	3140	3270	3390	3520	3640	3770	3910
9	4040	4180	4320	4460	4600	4750	4890	5040	5190	5350
10	5500	5660	5820	5980	6140	6310	6470	6640	6810	6990
11	7160	7340	7520	7700	7880	8070	8260	8440	8640	8830
12	9020	9220	9420	9620	9820	10000	10200	10400	10700	10900
13	11100	11300	11500	11700	12000	12200	12400	12600	12900	13100
14	13300	13600	13800	14000	14300	14500	14800	15000	15300	15500
15	15800	16000	16300	16500	16800	17000	17300	17600	17800	18100
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
16	18400	18700	18900	19200	19500	19800	20000	20300	20600	20900
17	21200	21500	21800	22100	22400	22700	23000	23300	23600	23900
18	24200	24500	24800	25100	25400	25700	26100	26400	26700	27000
19	27300	27700	28000	28300	28700	29000	29300	29700	30000	30300
20	30700	31000	31400	31700	32100	32400	32800	33100	33500	33800
21	34200	34600	34900	35300	35700	36000	36400	36800	37100	37500
22	37900	38300	38700	39000	39400	39800	40200	40600	41000	41400
23	41800	42200	42600	43000	43400	43800	44200	44600	45000	45400
24	45800	46200	46600	47000	47500	47900	48300	48700	49100	49600
25	50000	50400	50900	51300	51800	52200	52700	53100	53600	54000
26	54500	54900	55400	55900	56300	56800	57300	57700	58200	58700
27	59100	59600	60100	60600	61100	61500	62000	62500	63000	63500
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
28	64000	64500	65000	65500	66000	66500	67000	67500	68000	68500
29	69000
