Klamath - Below J.C. Boyle Plant

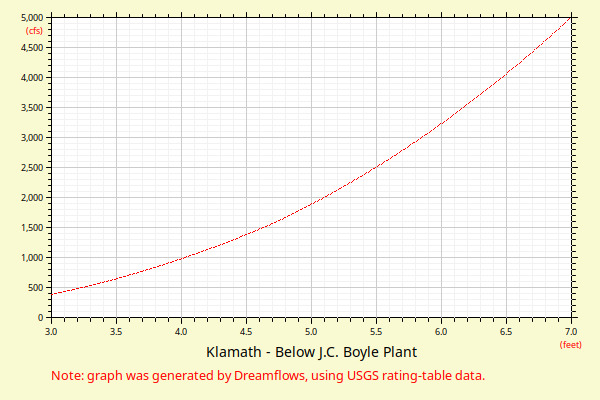

This rating table shows the relationship between gauge height and river flow for USGS gauge id 11510700, located on the Klamath River, 0.6 miles below John C. Boyle Powerplant, OR. Dreamflows generated the graph and table using USGS supplied rating table data. NOTE: The rating table below was published May 29, 2008 and was valid only at that time. The relationship between gauge height and river flow may change over time and therefore the older the data, the less reliable it is likely to be. The graph shows the range of data of primary interest to boaters, while the numerical listing gives the full range of available data.

Flow (in cfs) - last revised May 29, 2008
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
2 265 305 345
3 389 435 481 530 584 640 700 763 830 900
4 973 1050 1130 1210 1300 1390 1480 1580 1680 1790
5 1900 2020 2140 2260 2390 2520 2660 2800 2950 3090
6 3250 3410 3570 3730 3900 4080 4260 4440 4630 4830
7 5020 5230 5430 5640 5860 6080 6310 6540 6780 7020
8 7260 7510 7770 8030 8300 8570 8840 9120 9410 9700
9 10000 10300 10600 10900 11200 11600 11900 12200 12600 12900
10 13200

	Flow (in cfs) - last revised May 29, 2008
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
2								265	305	345
3	389	435	481	530	584	640	700	763	830	900
4	973	1050	1130	1210	1300	1390	1480	1580	1680	1790
5	1900	2020	2140	2260	2390	2520	2660	2800	2950	3090
6	3250	3410	3570	3730	3900	4080	4260	4440	4630	4830
7	5020	5230	5430	5640	5860	6080	6310	6540	6780	7020
8	7260	7510	7770	8030	8300	8570	8840	9120	9410	9700
9	10000	10300	10600	10900	11200	11600	11900	12200	12600	12900
10	13200
