Klamath - Below Seiad Valley

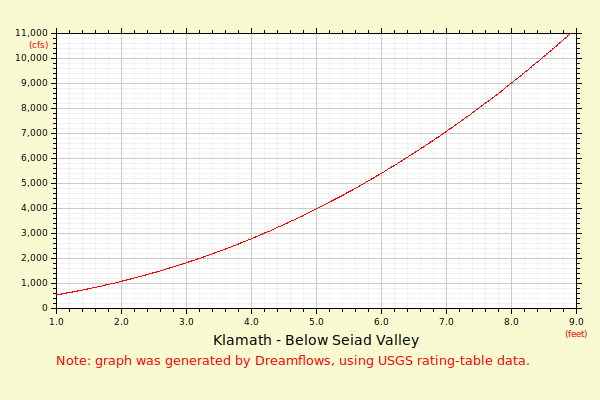

This rating table shows the relationship between gauge height and river flow for USGS gauge id 11520500, located on the Klamath River below Seiad Valley, CA. Dreamflows generated the graph and table using USGS supplied rating table data. NOTE: The rating table below was published Aug 31, 2009 and was valid only at that time. The relationship between gauge height and river flow may change over time and therefore the older the data, the less reliable it is likely to be. The graph shows the range of data of primary interest to boaters, while the numerical listing gives the full range of available data.

Flow (in cfs) - last revised Aug 31, 2009
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
1 728 779 832 887 944 1000
2 1060 1130 1190 1260 1330 1400 1480 1550 1630 1710
3 1790 1880 1960 2050 2140 2240 2330 2430 2530 2630
4 2730 2840 2950 3060 3180 3290 3410 3530 3650 3780
5 3910 4040 4170 4310 4440 4580 4730 4870 5020 5170
6 5320 5470 5630 5790 5950 6120 6280 6450 6630 6800
7 6980 7160 7340 7530 7710 7900 8100 8290 8490 8690
8 8900 9100 9310 9520 9740 9950 10200 10400 10600 10800
9 11100 11300 11500 11800 12000 12300 12500 12800 13000 13300
10 13500 13800 14100 14300 14600 14900 15100 15400 15700 16000
11 16300 16500 16800 17100 17400 17700 18000 18300 18600 19000
12 19300 19600 19900 20200 20600 20900 21200 21600 21900 22200
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
13 22600 22900 23300 23600 24000 24300 24700 25100 25400 25800
14 26200 26600 26900 27300 27700 28100 28500 28900 29300 29700
15 30100 30500 30900 31300 31700 32200 32600 33000 33400 33900
16 34300 34700 35200 35600 36100 36500 37000 37400 37900 38400
17 38800 39300 39800 40200 40700 41200 41700 42200 42700 43200
18 43700 44200 44700 45200 45700 46200 46700 47200 47800 48300
19 48800 49400 49900 50400 51000 51500 52100 52600 53200 53700
20 54300 54900 55400 56000 56600 57200 57800 58300 58900 59500
21 60100 60700 61300 61900 62500 63200 63800 64400 65000 65600
22 66300 66900 67500 68200 68800 69500 70100 70800 71400 72100
23 72800 73400 74100 74800 75500 76100 76800 77500 78200 78900
24 79600 80300 81000 81700 82400 83100 83900 84600 85300 86000
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
25 86800 87500 88300 89000 89700 90500 91200 92000 92800 93500
26 94300 95100 95800 96600 97400 98200 99000 99800 101000 101000
27 102000 103000 104000 105000 105000 106000 107000 108000 109000 110000
28 110000 111000 112000 113000 114000 115000 116000 116000 117000 118000
29 119000 120000 121000 122000 123000 123000 124000 125000 126000 127000
30 128000 129000 130000 131000 132000 133000 134000 134000 135000 136000
31 137000 138000 139000 140000 141000 142000 143000 144000 145000 146000
32 147000 148000 149000 150000 151000 152000 153000 154000 155000 156000
33 157000 158000 159000 160000 161000 162000 163000 164000 165000 166000
34 168000

	Flow (in cfs) - last revised Aug 31, 2009
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
1					728	779	832	887	944	1000
2	1060	1130	1190	1260	1330	1400	1480	1550	1630	1710
3	1790	1880	1960	2050	2140	2240	2330	2430	2530	2630
4	2730	2840	2950	3060	3180	3290	3410	3530	3650	3780
5	3910	4040	4170	4310	4440	4580	4730	4870	5020	5170
6	5320	5470	5630	5790	5950	6120	6280	6450	6630	6800
7	6980	7160	7340	7530	7710	7900	8100	8290	8490	8690
8	8900	9100	9310	9520	9740	9950	10200	10400	10600	10800
9	11100	11300	11500	11800	12000	12300	12500	12800	13000	13300
10	13500	13800	14100	14300	14600	14900	15100	15400	15700	16000
11	16300	16500	16800	17100	17400	17700	18000	18300	18600	19000
12	19300	19600	19900	20200	20600	20900	21200	21600	21900	22200
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
13	22600	22900	23300	23600	24000	24300	24700	25100	25400	25800
14	26200	26600	26900	27300	27700	28100	28500	28900	29300	29700
15	30100	30500	30900	31300	31700	32200	32600	33000	33400	33900
16	34300	34700	35200	35600	36100	36500	37000	37400	37900	38400
17	38800	39300	39800	40200	40700	41200	41700	42200	42700	43200
18	43700	44200	44700	45200	45700	46200	46700	47200	47800	48300
19	48800	49400	49900	50400	51000	51500	52100	52600	53200	53700
20	54300	54900	55400	56000	56600	57200	57800	58300	58900	59500
21	60100	60700	61300	61900	62500	63200	63800	64400	65000	65600
22	66300	66900	67500	68200	68800	69500	70100	70800	71400	72100
23	72800	73400	74100	74800	75500	76100	76800	77500	78200	78900
24	79600	80300	81000	81700	82400	83100	83900	84600	85300	86000
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
25	86800	87500	88300	89000	89700	90500	91200	92000	92800	93500
26	94300	95100	95800	96600	97400	98200	99000	99800	101000	101000
27	102000	103000	104000	105000	105000	106000	107000	108000	109000	110000
28	110000	111000	112000	113000	114000	115000	116000	116000	117000	118000
29	119000	120000	121000	122000	123000	123000	124000	125000	126000	127000
30	128000	129000	130000	131000	132000	133000	134000	134000	135000	136000
31	137000	138000	139000	140000	141000	142000	143000	144000	145000	146000
32	147000	148000	149000	150000	151000	152000	153000	154000	155000	156000
33	157000	158000	159000	160000	161000	162000	163000	164000	165000	166000
34	168000
