Trinity - Above Coffee Cr

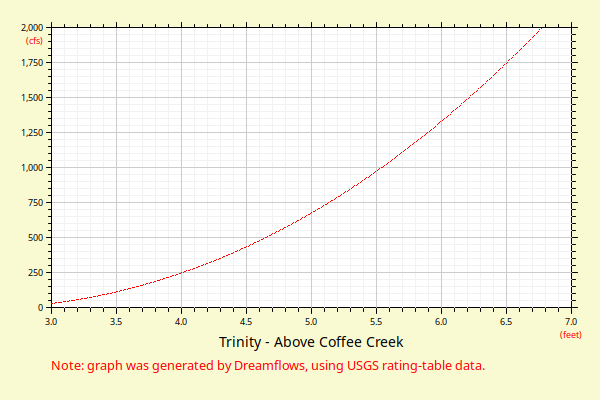

This rating table shows the relationship between gauge height and river flow for the USGS gauge on the Trinity River, three miles above Coffee Creek. Dreamflows generated the graph and table using USGS supplied rating table data. NOTE: The rating table below was published Oct 1, 2007 and was valid only at that time. The relationship between gauge height and river flow may change over time and therefore the older the data, the less reliable it is likely to be. The graph shows the range of data of primary interest to boaters, while the numerical listing gives the full range of available data.

Flow (in cfs) - last revised Oct 1, 2007
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
2 5
3 11 20 31 44 59 76 96 118 141 167
4 195 224 257 292 330 369 412 456 503 553
5 604 658 714 772 833 895 960 1030 1100 1170
6 1240 1320 1400 1480 1560 1640 1730 1820 1910 2010
7 2100 2200 2300 2400 2510 2610 2720 2830 2950 3060
8 3180 3300 3420 3550 3670 3800 3930 4070 4210 4340
9 4490 4630 4780 4930 5080 5230 5390 5540 5700 5870
10 6030 6200 6370 6540 6710 6890 7060 7250 7430 7610
11 7800 7970 8140 8320 8490 8670 8850 9030 9210 9390
12 9580 9770 9950 10100 10300 10500 10700 10900 11100 11300
13 11500 11700 11900 12100 12300 12500 12700 13000 13200 13400
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
14 13600 13800 14000 14200 14500 14700 14900 15100 15300 15600
15 15800 16000 16200 16500 16700 16900 17200 17400 17600 17900
16 18100 18400 18600 18900 19100 19300 19600 19800 20100 20300
17 20600 20900 21100 21400 21600 21900 22100 22400 22700 22900
18 23200 23500 23700 24000 24300 24600 24800 25100 25400 25700
19 25900 26200 26500
20

	Flow (in cfs) - last revised Oct 1, 2007
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
2										5
3	11	20	31	44	59	76	96	118	141	167
4	195	224	257	292	330	369	412	456	503	553
5	604	658	714	772	833	895	960	1030	1100	1170
6	1240	1320	1400	1480	1560	1640	1730	1820	1910	2010
7	2100	2200	2300	2400	2510	2610	2720	2830	2950	3060
8	3180	3300	3420	3550	3670	3800	3930	4070	4210	4340
9	4490	4630	4780	4930	5080	5230	5390	5540	5700	5870
10	6030	6200	6370	6540	6710	6890	7060	7250	7430	7610
11	7800	7970	8140	8320	8490	8670	8850	9030	9210	9390
12	9580	9770	9950	10100	10300	10500	10700	10900	11100	11300
13	11500	11700	11900	12100	12300	12500	12700	13000	13200	13400
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
14	13600	13800	14000	14200	14500	14700	14900	15100	15300	15600
15	15800	16000	16200	16500	16700	16900	17200	17400	17600	17900
16	18100	18400	18600	18900	19100	19300	19600	19800	20100	20300
17	20600	20900	21100	21400	21600	21900	22100	22400	22700	22900
18	23200	23500	23700	24000	24300	24600	24800	25100	25400	25700
19	25900	26200	26500
20
