Mi. Tuolumne - Above So. Fork Confluence

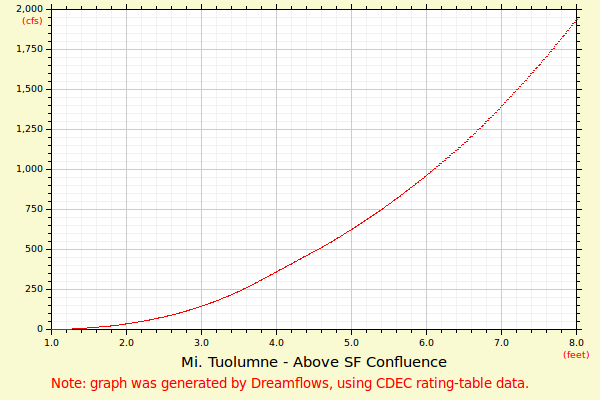

This rating table shows the approximate relationship between gauge height and river flow for the USGS gauge on the Middle Fork Tuolumne, above the South Fork confluence. Dreamflows derived the table mathematically, using sample gauge height and river flow data reported by the USGS '11282000' gauge. NOTE: The rating table below was generated Apr 26, 2002 and was valid only at that time. The relationship between gauge height and river flow may change over time and therefore the older the data, the less reliable it is likely to be. The graph shows the range of data of primary interest to boaters, while the numerical listing gives the full range of available data.

Flow (in cfs) - last revised Apr 26, 2002
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
0 0 0 0 0 1
1 1 2 3 4 6 7 10 12 15 18
2 23 27 32 37 44 52 59 68 77 87
3 99 111 125 139 155 172 189 208 229 250
4 273 297 322 347 372 397 422 448 473 498
5 524 552 579 608 637 668 699 731 763 797
6 831 866 902 939 977 1016 1055 1095 1136 1179
7 1223 1269 1316 1363 1412 1462 1512 1564 1616 1670
8 1725 1781 1838 1896 1955 2015 2076 2138 2201 2266
9 2331 2398 2465 2534 2604 2675 2747 2821 2895 2971
10 3048 3126 3205 3285 3366 3447 3528 3611 3695 3780
11 3866 3954 4042 4132 4223 4314 4407 4502 4597 4694
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
12 4791 4890 4990 5092 5196 5300 5406 5513 5621 5731
13 5842 5954 6067 6181 6297 6414
14

	Flow (in cfs) - last revised Apr 26, 2002
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
0						0	0	0	0	1
1	1	2	3	4	6	7	10	12	15	18
2	23	27	32	37	44	52	59	68	77	87
3	99	111	125	139	155	172	189	208	229	250
4	273	297	322	347	372	397	422	448	473	498
5	524	552	579	608	637	668	699	731	763	797
6	831	866	902	939	977	1016	1055	1095	1136	1179
7	1223	1269	1316	1363	1412	1462	1512	1564	1616	1670
8	1725	1781	1838	1896	1955	2015	2076	2138	2201	2266
9	2331	2398	2465	2534	2604	2675	2747	2821	2895	2971
10	3048	3126	3205	3285	3366	3447	3528	3611	3695	3780
11	3866	3954	4042	4132	4223	4314	4407	4502	4597	4694
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
12	4791	4890	4990	5092	5196	5300	5406	5513	5621	5731
13	5842	5954	6067	6181	6297	6414
14
