American - Rel Lake Natoma

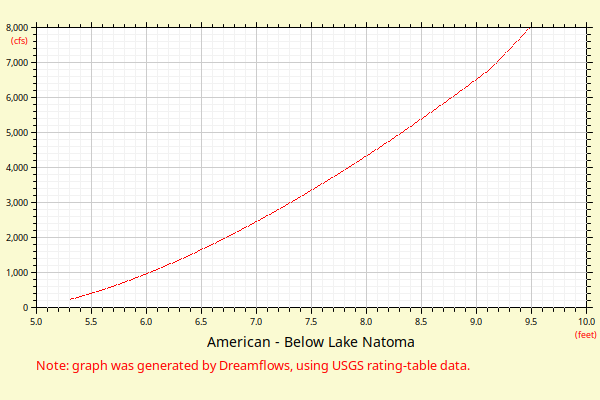

This rating table shows the relationship between gauge height and river flow for USGS gauge id 11446500, located on the American River, 700 feet below the Hazel Ave bridge, CA. Dreamflows generated the graph and table using USGS supplied rating table data. NOTE: The rating table below was published Oct 10, 2009 and was valid only at that time. The relationship between gauge height and river flow may change over time and therefore the older the data, the less reliable it is likely to be. The graph shows the range of data of primary interest to boaters, while the numerical listing gives the full range of available data.

Flow (in cfs) - last revised Oct 10, 2009
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
4 573 643 715
5 791 870 952 1040 1130 1220 1310 1410 1510 1610
6 1720 1830 1940 2050 2170 2290 2460 2660 2860 3080
7 3290 3500 3730 3960 4210 4440 4690 4950 5210 5480
8 5750 6020 6310 6590 6900 7190 7480 7800 8110 8440
9 8760 8980 9210 9440 9670 9900 10100 10400 10600 10900
10 11100 11400 11600 11900 12100 12400 12700 13000 13300 13600
11 13900 14200 14500 14900 15200 15500 15800 16200 16500 16900
12 17300 17600 18000 18300 18700 19100 19500 19900 20200 20600
13 21000 21400 21800 22200 22600 23100 23500 23900 24300 24700
14 25200 25600 26100 26500 26900 27400 27900 28400 28800 29300
15 29800 30300 30800 31300 31800 32400 32900 33400 33900 34500
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
16 35000 35500 36100 36600 37200 37800 38300 38900 39500 40000
17 40600 41200 41800 42400 43000 43600 44200 44800 45500 46100
18 46700 47300 48000 48600 49300 49900 50600 51200 51900 52600
19 53200 53900 54600 55300 56000 56700 57400 58100 58800 59500
20 60300 61000 61700 62500 63200 63900 64700 65400 66200 66900
21 67700 68500 69200 70000 70800 71600 72400 73200 74000 74800
22 75600 76400 77200 78000 78900 79700 80500 81400 82200 83100
23 83900 84800 85600 86500 87400 88300 89100 90000 90900 91800
24 92700 93600 94500 95500 96400 97300 98200 99200 100000 101000
25 102000 103000 104000 105000 106000 107000 108000 109000 110000 111000
26 112000 113000 115000 116000 117000 118000 119000 120000 121000 122000
27 123000 125000 126000 127000 128000 129000 130000 131000 133000 134000
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
28 135000

	Flow (in cfs) - last revised Oct 10, 2009
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
4								573	643	715
5	791	870	952	1040	1130	1220	1310	1410	1510	1610
6	1720	1830	1940	2050	2170	2290	2460	2660	2860	3080
7	3290	3500	3730	3960	4210	4440	4690	4950	5210	5480
8	5750	6020	6310	6590	6900	7190	7480	7800	8110	8440
9	8760	8980	9210	9440	9670	9900	10100	10400	10600	10900
10	11100	11400	11600	11900	12100	12400	12700	13000	13300	13600
11	13900	14200	14500	14900	15200	15500	15800	16200	16500	16900
12	17300	17600	18000	18300	18700	19100	19500	19900	20200	20600
13	21000	21400	21800	22200	22600	23100	23500	23900	24300	24700
14	25200	25600	26100	26500	26900	27400	27900	28400	28800	29300
15	29800	30300	30800	31300	31800	32400	32900	33400	33900	34500
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
16	35000	35500	36100	36600	37200	37800	38300	38900	39500	40000
17	40600	41200	41800	42400	43000	43600	44200	44800	45500	46100
18	46700	47300	48000	48600	49300	49900	50600	51200	51900	52600
19	53200	53900	54600	55300	56000	56700	57400	58100	58800	59500
20	60300	61000	61700	62500	63200	63900	64700	65400	66200	66900
21	67700	68500	69200	70000	70800	71600	72400	73200	74000	74800
22	75600	76400	77200	78000	78900	79700	80500	81400	82200	83100
23	83900	84800	85600	86500	87400	88300	89100	90000	90900	91800
24	92700	93600	94500	95500	96400	97300	98200	99200	100000	101000
25	102000	103000	104000	105000	106000	107000	108000	109000	110000	111000
26	112000	113000	115000	116000	117000	118000	119000	120000	121000	122000
27	123000	125000	126000	127000	128000	129000	130000	131000	133000	134000
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
28	135000
