So. American - At Chili Bar

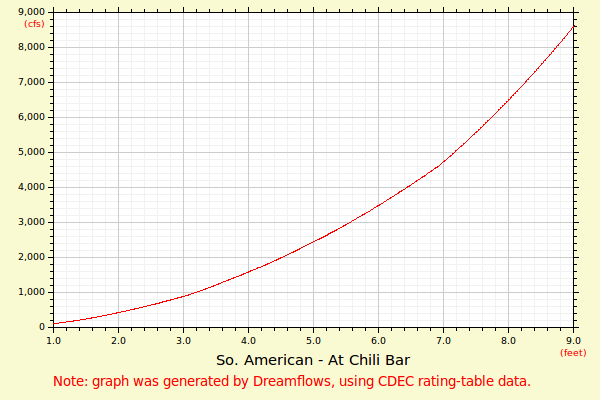

This rating table shows the relationship between gauge height and river flow for the CDEC gauge on the South Fork American River at Chili Bar. Dreamflows generated the graph and table using CDEC supplied rating table data. NOTE: The rating table below was published Oct 1, 2003 and was valid only at that time. The relationship between gauge height and river flow may change over time and therefore the older the data, the less reliable it is likely to be. The graph shows the range of data of primary interest to boaters, while the numerical listing gives the full range of available data.

Flow (in cfs) - last revised Oct 1, 2003
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
0 34 49 66 84 103 122 143
1 164 191 220 250 281 314 349 384 421 459
2 498 539 581 624 668 713 760 808 861 918
3 976 1036 1098 1161 1226 1293 1361 1431 1502 1575
4 1650 1726 1803 1882 1963 2045 2129 2214 2301 2389
5 2478 2570 2662 2756 2852 2949 3048 3148 3249 3352
6 3457 3562 3670 3778 3888 4000 4121 4244 4368 4495
7 4623 4753 4884 5018 5153 5290 5428 5568 5711 5854
8 6000 6137 6275 6415 6556 6699 6843 6988 7135 7283
9 7432 7583 7735 7888 8043 8199 8357 8515 8676 8837
10 9000 9169 9339 9511 9684 9858 10034 10212 10391 10571
11 10753 10936 11121 11307 11495 11684 11874 12066 12259 12454
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
12 12650 12847 13046 13247 13449 13652 13856 14062 14270 14479
13 14689 14901 15114 15328 15544 15761 15980 16200 16422 16645
14 16869 17094 17322 17550 17780 18011 18244 18478 18713 18950
15 19188 19428 19668 19911 20154 20399 20646 20894 21143 21393
16 21645 21899 22153 22409 22667 22925 23185 23447 23710 23974
17 24240 24506 24775 25044 25315 25588 25861 26136 26413 26690
18 26970 27250 27532 27815 28099 28385 28672 28961 29251 29542
19 29834 30128 30423 30720 31018 31317 31618 31919 32223 32527
20 32833 33140 33449 33759 34070 34382 34696 35011 35328 35645
21 35965 36285 36607 36930 37254 37580 37907 38235 38565 38896
22 39228 39562 39897 40233 40570 40909 41249 41591 41933 42277
23 42623 42969 43317 43667 44017 44369 44722 45077 45433 45790
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
24 46148 46508 46869 47231 47595 47959 48325 48693 49062 49432
25 49803 50176 50549 50925 51301 51679 52058 52438 52820 53203
26 53587 53972 54359 54747 55137 55527 55919 56312 56707 57102
27 57499 57898 58297 58698 59100 59503 59908 60314 60721 61130
28 61539 61950 62363 62776 63191 63607 64024 64443 64863 65284
29 65706 66130 66555 66981 67409 67837 68267 68699 69131 69565
30 70000

	Flow (in cfs) - last revised Oct 1, 2003
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
0				34	49	66	84	103	122	143
1	164	191	220	250	281	314	349	384	421	459
2	498	539	581	624	668	713	760	808	861	918
3	976	1036	1098	1161	1226	1293	1361	1431	1502	1575
4	1650	1726	1803	1882	1963	2045	2129	2214	2301	2389
5	2478	2570	2662	2756	2852	2949	3048	3148	3249	3352
6	3457	3562	3670	3778	3888	4000	4121	4244	4368	4495
7	4623	4753	4884	5018	5153	5290	5428	5568	5711	5854
8	6000	6137	6275	6415	6556	6699	6843	6988	7135	7283
9	7432	7583	7735	7888	8043	8199	8357	8515	8676	8837
10	9000	9169	9339	9511	9684	9858	10034	10212	10391	10571
11	10753	10936	11121	11307	11495	11684	11874	12066	12259	12454
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
12	12650	12847	13046	13247	13449	13652	13856	14062	14270	14479
13	14689	14901	15114	15328	15544	15761	15980	16200	16422	16645
14	16869	17094	17322	17550	17780	18011	18244	18478	18713	18950
15	19188	19428	19668	19911	20154	20399	20646	20894	21143	21393
16	21645	21899	22153	22409	22667	22925	23185	23447	23710	23974
17	24240	24506	24775	25044	25315	25588	25861	26136	26413	26690
18	26970	27250	27532	27815	28099	28385	28672	28961	29251	29542
19	29834	30128	30423	30720	31018	31317	31618	31919	32223	32527
20	32833	33140	33449	33759	34070	34382	34696	35011	35328	35645
21	35965	36285	36607	36930	37254	37580	37907	38235	38565	38896
22	39228	39562	39897	40233	40570	40909	41249	41591	41933	42277
23	42623	42969	43317	43667	44017	44369	44722	45077	45433	45790
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
24	46148	46508	46869	47231	47595	47959	48325	48693	49062	49432
25	49803	50176	50549	50925	51301	51679	52058	52438	52820	53203
26	53587	53972	54359	54747	55137	55527	55919	56312	56707	57102
27	57499	57898	58297	58698	59100	59503	59908	60314	60721	61130
28	61539	61950	62363	62776	63191	63607	64024	64443	64863	65284
29	65706	66130	66555	66981	67409	67837	68267	68699	69131	69565
30	70000
