Mi. American - Above Tunnel Chute

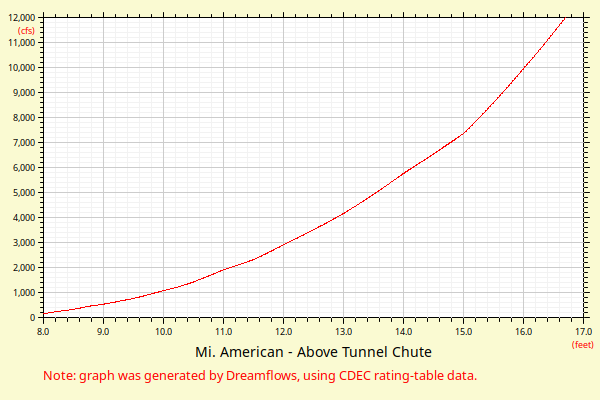

This rating table shows the relationship between gauge height and river flow for CDEC gauge id OXB, located on the Middle Fork American River (on river right, about 1.5 mile below Ralston Dam), CA. Dreamflows generated the graph and table using CDEC supplied rating table data. NOTE: The rating table below was published Oct 27, 2009 and was valid only at that time. The relationship between gauge height and river flow may change over time and therefore the older the data, the less reliable it is likely to be. The graph shows the range of data of primary interest to boaters, while the numerical listing gives the full range of available data.

Flow (in cfs) - last revised Oct 27, 2009
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
7 72 80 89 98 107
8 117 128 139 150 163 176 189 204 220 236
9 253 272 291 311 332 353 376 399 424 449
10 475 504 534 565 597 630 666 704 743 783
11 825 867 911 956 1002 1050 1101 1153 1207 1263
12 1320 1379 1440 1503 1567 1632 1700 1768 1837 1908
13 1980 2060 2143 2227 2314 2403 2494 2587 2683 2780
14 2880 2989 3101 3216 3334 3454 3577 3704 3833 3965
15 4100 4248 4400 4555 4714 4877 5044 5214 5389 5567
16 5750 5936 6126 6320 6519 6721 6928 7140 7355 7575
17 7800 8029 8262 8500 8743 8990 9243 9500 9761 10028
18 10300 10585 10875 11171 11472 11779 12092 12410 12734 13064
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
19 13400 13791 14191 14599 15015 15440 15874 16317 16769 17230
20 17700 18127 18561 19002 19451 19907 20370 20841 21320 21806
21 22300 22845 23401 23965 24540 25125 25719 26324 26939 27564
22 28200 28790 29390 29997 30614 31239 31873 32516 33168 33830
23 34500 35335 36185 37051 37932 38829 39742 40671 41616 42578
24 43556 44551 45563 46593 47640 48705 49787 50888 52007 53144
25 54300 55451 56620 57808 59014 60239 61483 62746 64028 65330
26 66652 67994 69356 70738 72141 73564 75009 76474 77961 79470
27 81000 82426 83871 85334 86815 88315 89834 91372 92929 94505
28 96100 97664 99247 100848 102467 104106 105762 107438 109133 110847
29 112580 114332 116104 117896 119708 121539 123391 125262 127154 129067
30 131000

	Flow (in cfs) - last revised Oct 27, 2009
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
7						72	80	89	98	107
8	117	128	139	150	163	176	189	204	220	236
9	253	272	291	311	332	353	376	399	424	449
10	475	504	534	565	597	630	666	704	743	783
11	825	867	911	956	1002	1050	1101	1153	1207	1263
12	1320	1379	1440	1503	1567	1632	1700	1768	1837	1908
13	1980	2060	2143	2227	2314	2403	2494	2587	2683	2780
14	2880	2989	3101	3216	3334	3454	3577	3704	3833	3965
15	4100	4248	4400	4555	4714	4877	5044	5214	5389	5567
16	5750	5936	6126	6320	6519	6721	6928	7140	7355	7575
17	7800	8029	8262	8500	8743	8990	9243	9500	9761	10028
18	10300	10585	10875	11171	11472	11779	12092	12410	12734	13064
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
19	13400	13791	14191	14599	15015	15440	15874	16317	16769	17230
20	17700	18127	18561	19002	19451	19907	20370	20841	21320	21806
21	22300	22845	23401	23965	24540	25125	25719	26324	26939	27564
22	28200	28790	29390	29997	30614	31239	31873	32516	33168	33830
23	34500	35335	36185	37051	37932	38829	39742	40671	41616	42578
24	43556	44551	45563	46593	47640	48705	49787	50888	52007	53144
25	54300	55451	56620	57808	59014	60239	61483	62746	64028	65330
26	66652	67994	69356	70738	72141	73564	75009	76474	77961	79470
27	81000	82426	83871	85334	86815	88315	89834	91372	92929	94505
28	96100	97664	99247	100848	102467	104106	105762	107438	109133	110847
29	112580	114332	116104	117896	119708	121539	123391	125262	127154	129067
30	131000
