So. Yuba - At Hwy 49 Bridge

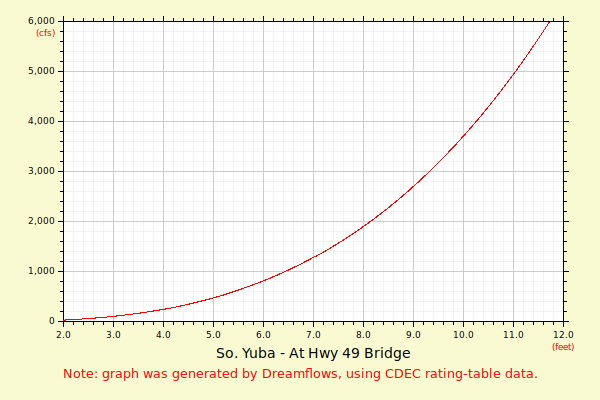

This rating table shows the relationship between gauge height and river flow for the CDEC gauge on the South Fork Yuba at Jones Bar (on river left, about a mile below the Highway 49 Bridge). Dreamflows generated the graph and table using CDEC supplied rating table data. NOTE: The rating table below was published Mar 25, 2003 and was valid only at that time. The relationship between gauge height and river flow may change over time and therefore the older the data, the less reliable it is likely to be. The graph shows the range of data of primary interest to boaters, while the numerical listing gives the full range of available data.

Flow (in cfs) - last revised Mar 25, 2003
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
1 18 21 25 29 33 38
2 44 50 56 63 70 78 86 95 104 114
3 124 135 147 159 172 186 200 215 231 247
4 264 282 301 320 342 366 390 414 439 466
5 493 521 550 582 615 650 686 723 761 801
6 842 885 929 974 1021 1069 1118 1170 1222 1277
7 1333 1390 1449 1510 1572 1636 1702 1770 1839 1910
8 1983 2058 2134 2213 2293 2375 2459 2545 2634 2724
9 2816 2910 3006 3104 3205 3307 3412 3519 3628 3739
10 3853 3969 4087 4207 4330 4455 4583 4713 4845 4980
11 5117 5257 5399 5544 5691 5841 5994 6149 6307 6467
12 6630 6796 6965 7136 7310 7487 7667 7849 8035 8223
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
13 8414 8608 8805 9005 9208 9415 9624 9836 10051 10270
14 10491 10716 10944 11175 11409 11646 11887 12131 12378 12629
15 12883 13140 13401 13665 13933 14204 14479 14757 15038 15323
16 15612 15904 16200 16500 16803 17110 17420 17735 18053 18374
17 18700 19023 19350 19681 20015 20353 20695 21041 21390 21743
18 22100 22433 22769 23107 23450 23795 24143 24495 24850 25208
19 25569 25934 26302 26673 27047 27425 27806 28190 28578 28969
20 29363 29761 30162 30566 30974 31385 31800 32218 32639 33064
21 33492 33924 34360 34799 35241 35687 36136 36589 37046 37506
22 37970 38437 38908 39382 39860 40342 40827 41316 41809 42306
23 42806 43309 43817 44328 44843 45362 45884 46411 46941 47474
24 48012 48554 49099 49648 50201 50758 51318 51883 52451 53024
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
25 53600

	Flow (in cfs) - last revised Mar 25, 2003
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
1					18	21	25	29	33	38
2	44	50	56	63	70	78	86	95	104	114
3	124	135	147	159	172	186	200	215	231	247
4	264	282	301	320	342	366	390	414	439	466
5	493	521	550	582	615	650	686	723	761	801
6	842	885	929	974	1021	1069	1118	1170	1222	1277
7	1333	1390	1449	1510	1572	1636	1702	1770	1839	1910
8	1983	2058	2134	2213	2293	2375	2459	2545	2634	2724
9	2816	2910	3006	3104	3205	3307	3412	3519	3628	3739
10	3853	3969	4087	4207	4330	4455	4583	4713	4845	4980
11	5117	5257	5399	5544	5691	5841	5994	6149	6307	6467
12	6630	6796	6965	7136	7310	7487	7667	7849	8035	8223
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
13	8414	8608	8805	9005	9208	9415	9624	9836	10051	10270
14	10491	10716	10944	11175	11409	11646	11887	12131	12378	12629
15	12883	13140	13401	13665	13933	14204	14479	14757	15038	15323
16	15612	15904	16200	16500	16803	17110	17420	17735	18053	18374
17	18700	19023	19350	19681	20015	20353	20695	21041	21390	21743
18	22100	22433	22769	23107	23450	23795	24143	24495	24850	25208
19	25569	25934	26302	26673	27047	27425	27806	28190	28578	28969
20	29363	29761	30162	30566	30974	31385	31800	32218	32639	33064
21	33492	33924	34360	34799	35241	35687	36136	36589	37046	37506
22	37970	38437	38908	39382	39860	40342	40827	41316	41809	42306
23	42806	43309	43817	44328	44843	45362	45884	46411	46941	47474
24	48012	48554	49099	49648	50201	50758	51318	51883	52451	53024
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
25	53600
