Mad River - At Arcata

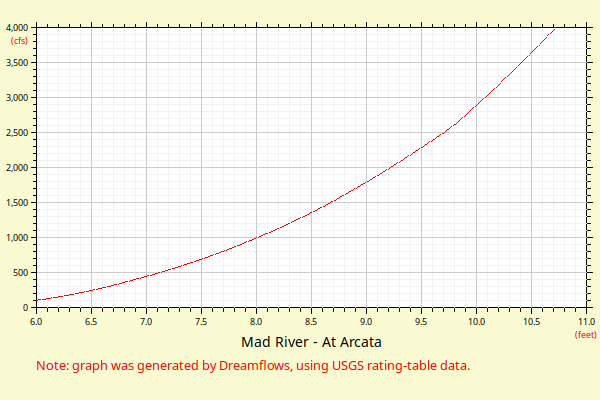

This rating table shows the relationship between gauge height and river flow for the USGS gauge on the Mad River at Arcata. Dreamflows generated the graph and table using USGS supplied rating table data. NOTE: The rating table below was published Jun 5, 2007 and was valid only at that time. The relationship between gauge height and river flow may change over time and therefore the older the data, the less reliable it is likely to be. The graph shows the range of data of primary interest to boaters, while the numerical listing gives the full range of available data.

Flow (in cfs) - last revised Jun 5, 2007
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
5 18 30 45 63 85 110 139 168
6 201 232 271 308 352 395 440 495 546 600
7 657 716 795 878 966 1060 1160 1260 1360 1480
8 1590 1710 1840 1970 2110 2250 2400 2550 2710 2870
9 3040 3210 3390 3570 3760 3950 4150 4360 4570 4760
10 4950 5130 5320 5510 5700 5890 6090 6300 6500 6710
11 6920 7130 7350 7570 7790 8020 8250 8480 8720 8960
12 9200 9440 9690 9920 10200 10400 10600 10900 11100 11400
13 11600 11900 12100 12400 12700 12900 13200 13500 13700 14000
14 14300 14600 14900 15100 15400 15700 16000 16300 16600 16900
15 17200 17500 17800 18100 18400 18700 19000 19300 19700 20000
16 20300 20600 21000 21300 21600 21900 22300 22600 23000 23300
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
17 23600 24000 24300 24700 25000 25400 25700 26100 26500 26800
18 27200 27500 27900 28300 28700 29000 29400 29800 30200 30600
19 30900 31300 31700 32100 32500 32900 33300 33700 34100 34500
20 34900 35300 35700 36100 36600 37000 37500 37900 38400 38800
21 39300 39700 40200 40600 41100 41600 42000 42500 43000 43500
22 43900 44400 44900 45400 45900 46400 46900 47400 47900 48300
23 48900 49400 49900 50400 50900 51400 51900 52400 52900 53500
24 54000 54500 55100 55600 56100 56700 57200 57700 58300 58800
25 59400 59900 60500 61000 61600 62200 62700 63300 63900 64400
26 65000

	Flow (in cfs) - last revised Jun 5, 2007
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
5			18	30	45	63	85	110	139	168
6	201	232	271	308	352	395	440	495	546	600
7	657	716	795	878	966	1060	1160	1260	1360	1480
8	1590	1710	1840	1970	2110	2250	2400	2550	2710	2870
9	3040	3210	3390	3570	3760	3950	4150	4360	4570	4760
10	4950	5130	5320	5510	5700	5890	6090	6300	6500	6710
11	6920	7130	7350	7570	7790	8020	8250	8480	8720	8960
12	9200	9440	9690	9920	10200	10400	10600	10900	11100	11400
13	11600	11900	12100	12400	12700	12900	13200	13500	13700	14000
14	14300	14600	14900	15100	15400	15700	16000	16300	16600	16900
15	17200	17500	17800	18100	18400	18700	19000	19300	19700	20000
16	20300	20600	21000	21300	21600	21900	22300	22600	23000	23300
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
17	23600	24000	24300	24700	25000	25400	25700	26100	26500	26800
18	27200	27500	27900	28300	28700	29000	29400	29800	30200	30600
19	30900	31300	31700	32100	32500	32900	33300	33700	34100	34500
20	34900	35300	35700	36100	36600	37000	37500	37900	38400	38800
21	39300	39700	40200	40600	41100	41600	42000	42500	43000	43500
22	43900	44400	44900	45400	45900	46400	46900	47400	47900	48300
23	48900	49400	49900	50400	50900	51400	51900	52400	52900	53500
24	54000	54500	55100	55600	56100	56700	57200	57700	58300	58800
25	59400	59900	60500	61000	61600	62200	62700	63300	63900	64400
26	65000
