Trinity - At Cedar Flat

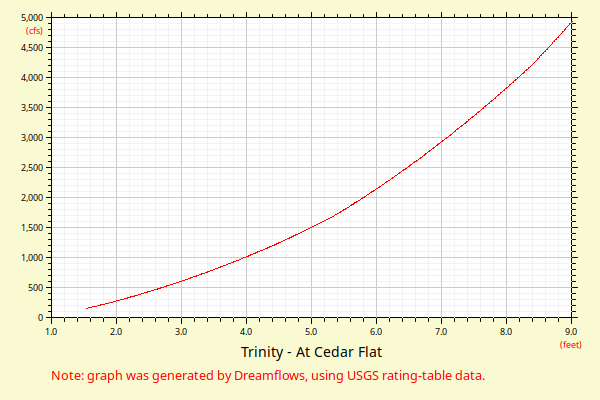

This rating table shows the relationship between gauge height and river flow for the USGS gauge on the Trinity River at the Cedar Flat Picnic Area (Burnt Ranch put-in). Dreamflows generated the graph and table using USGS supplied rating table data. NOTE: The rating table below was published Oct 1, 2006 and was valid only at that time. The relationship between gauge height and river flow may change over time and therefore the older the data, the less reliable it is likely to be. The graph shows the range of data of primary interest to boaters, while the numerical listing gives the full range of available data.

Flow (in cfs) - last revised Oct 1, 2006
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
2 258 286 316 347 379 411 446 482
3 519 557 596 636 677 719 762 807 852 898
4 945 993 1040 1090 1140 1190 1250 1300 1350 1410
5 1470 1520 1580 1640 1700 1770 1830 1900 1960 2030
6 2100 2160 2230 2300 2380 2450 2520 2590 2670 2750
7 2820 2910 3000 3090 3180 3270 3370 3460 3560 3670
8 3790 3910 4040 4170 4300 4440 4570 4710 4850 5000
9 5140 5290 5440 5590 5770 5950 6140 6330 6520 6720
10 6920 7130 7340 7550 7770 7990 8210 8440 8670 8910
11 9150 9390 9640 9850 10100 10300 10500 10700 10900 11100
12 11300 11600 11800 12000 12200 12500 12700 12900 13200 13400
13 13600 13900 14100 14400 14600 14900 15100 15400 15700 15900
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
14 16200 16500 16700 17000 17300 17600 17800 18100 18400 18700
15 19000 19300 19600 19900 20200 20500 20800 21100 21400 21700
16 22000 22300 22600 22900 23200 23500 23800 24200 24500 24800
17 25100 25400 25800 26100 26400 26800 27100 27400 27800 28100
18 28400 28800 29100 29500 29800 30200 30600 30900 31300 31600
19 32000 32300 32700 33000 33400 33700 34100 34400 34800 35100
20 35500 35800 36200 36600 36900 37300 37700 38000 38400 38800
21 39200 39500 39900 40300 40700 41000 41400 41800 42200 42600
22 43000 43400 43800 44200 44600 45000 45400 45800 46200 46600
23 47000 47400 47800 48200 48600 49100 49500 49900 50300 50700
24 51200 51600 52000 52400 52900 53300 53700 54200 54600 55100
25 55500 55900 56400 56800 57300 57700 58200 58600 59100 59500
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
26 60000 60500 61000 61400 61900 62400 62900 63400 63800 64300
27 64800 65300 65800 66300 66800 67300 67800 68300 68800 69300
28 69800 70400 70900 71400 71900 72400 72900 73500 74000 74500
29 75000 75600 76100 76600 77200 77700 78300 78800 79300 79900
30 80400 81000 81500 82100 82600 83200 83700 84300 84900 85400
31 86000

	Flow (in cfs) - last revised Oct 1, 2006
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
2			258	286	316	347	379	411	446	482
3	519	557	596	636	677	719	762	807	852	898
4	945	993	1040	1090	1140	1190	1250	1300	1350	1410
5	1470	1520	1580	1640	1700	1770	1830	1900	1960	2030
6	2100	2160	2230	2300	2380	2450	2520	2590	2670	2750
7	2820	2910	3000	3090	3180	3270	3370	3460	3560	3670
8	3790	3910	4040	4170	4300	4440	4570	4710	4850	5000
9	5140	5290	5440	5590	5770	5950	6140	6330	6520	6720
10	6920	7130	7340	7550	7770	7990	8210	8440	8670	8910
11	9150	9390	9640	9850	10100	10300	10500	10700	10900	11100
12	11300	11600	11800	12000	12200	12500	12700	12900	13200	13400
13	13600	13900	14100	14400	14600	14900	15100	15400	15700	15900
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
14	16200	16500	16700	17000	17300	17600	17800	18100	18400	18700
15	19000	19300	19600	19900	20200	20500	20800	21100	21400	21700
16	22000	22300	22600	22900	23200	23500	23800	24200	24500	24800
17	25100	25400	25800	26100	26400	26800	27100	27400	27800	28100
18	28400	28800	29100	29500	29800	30200	30600	30900	31300	31600
19	32000	32300	32700	33000	33400	33700	34100	34400	34800	35100
20	35500	35800	36200	36600	36900	37300	37700	38000	38400	38800
21	39200	39500	39900	40300	40700	41000	41400	41800	42200	42600
22	43000	43400	43800	44200	44600	45000	45400	45800	46200	46600
23	47000	47400	47800	48200	48600	49100	49500	49900	50300	50700
24	51200	51600	52000	52400	52900	53300	53700	54200	54600	55100
25	55500	55900	56400	56800	57300	57700	58200	58600	59100	59500
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
26	60000	60500	61000	61400	61900	62400	62900	63400	63800	64300
27	64800	65300	65800	66300	66800	67300	67800	68300	68800	69300
28	69800	70400	70900	71400	71900	72400	72900	73500	74000	74500
29	75000	75600	76100	76600	77200	77700	78300	78800	79300	79900
30	80400	81000	81500	82100	82600	83200	83700	84300	84900	85400
31	86000
