Klamath - At Orleans

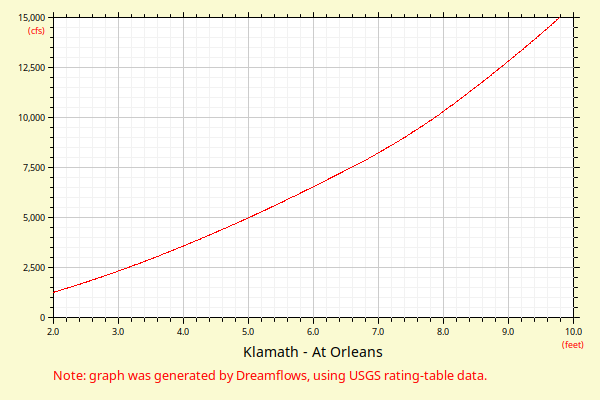

This rating table shows the relationship between gauge height and river flow for the USGS gauge on the Klamath River at the Hwy-96 bridge in Orleans. Dreamflows generated the graph and table using USGS supplied rating table data. NOTE: The rating table below was published Oct 1, 2007 and was valid only at that time. The relationship between gauge height and river flow may change over time and therefore the older the data, the less reliable it is likely to be. The graph shows the range of data of primary interest to boaters, while the numerical listing gives the full range of available data.

Flow (in cfs) - last revised Oct 1, 2007
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
2 1010 1090 1170 1250
3 1340 1430 1530 1630 1730 1830 1940 2050 2160 2270
4 2390 2510 2640 2770 2900 3030 3170 3310 3450 3590
5 3740 3900 4050 4210 4370 4530 4700 4870 5040 5220
6 5400 5580 5760 5950 6140 6340 6530 6730 6940 7140
7 7350 7560 7780 8000 8220 8440 8670 8900 9140 9370
8 9610 9850 10100 10300 10600 10900 11100 11400 11700 12000
9 12300 12500 12800 13100 13400 13700 14000 14300 14700 15000
10 15300 15600 15900 16300 16600 16900 17300 17600 18000 18300
11 18700 19000 19400 19800 20100 20500 20900 21300 21600 22000
12 22400 22800 23200 23600 24000 24400 24800 25200 25700 26100
13 26500 26900 27400 27800 28300 28700 29100 29600 30100 30500
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
14 31000 31400 31900 32400 32900 33300 33800 34300 34800 35300
15 35800 36300 36800 37300 37800 38400 38900 39400 39900 40500
16 41000 41500 42000 42600 43100 43600 44100 44700 45200 45700
17 46300 46800 47400 47900 48500 49000 49600 50200 50700 51300
18 51900 52500 53000 53600 54200 54800 55400 56000 56600 57200
19 57800 58400 59000 59600 60300 60900 61500 62100 62800 63400
20 64000 64700 65300 66000 66600 67300 67900 68600 69300 69900
21 70600 71300 71900 72600 73300 74000 74700 75400 76100 76800
22 77500 78200 78900 79600 80300 81000 81700 82500 83200 83900
23 84700 85400 86100 86900 87600 88400 89100 89900 90600 91400
24 92200 92900 93700 94500 95300 96000 96800 97600 98400 99200
25 100000 101000 102000 103000 104000 105000 105000 106000 107000 108000
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
26 109000 110000 111000 112000 113000 114000 115000 116000 117000 118000
27 119000 120000 121000 122000 123000 124000 125000 126000 127000 128000
28 129000 130000 131000 132000 133000 134000 135000 136000 137000 138000
29 139000 140000 141000 142000 143000 144000 146000 147000 148000 149000
30 150000 151000 152000 154000 155000 156000 157000 158000 160000 161000
31 162000 163000 164000 166000 167000 168000 169000 171000 172000 173000
32 175000 176000 177000 178000 180000 181000 182000 184000 185000 186000
33 188000 189000 190000 192000 193000 194000 196000 197000 199000 200000
34 201000 203000 204000 206000 207000 208000 210000 211000 213000 214000
35 216000 217000 218000 220000 221000 223000 224000 226000 227000 229000
36 230000 232000 233000 235000 236000 238000 239000 241000 242000 244000
37 246000 247000 249000 250000 252000 253000 255000 257000 258000 260000
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
38 261000 263000 265000 266000 268000 270000 271000 273000 275000 276000
39 278000 280000 281000 283000 285000 286000 288000 290000 292000 293000
40 295000

	Flow (in cfs) - last revised Oct 1, 2007
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
2							1010	1090	1170	1250
3	1340	1430	1530	1630	1730	1830	1940	2050	2160	2270
4	2390	2510	2640	2770	2900	3030	3170	3310	3450	3590
5	3740	3900	4050	4210	4370	4530	4700	4870	5040	5220
6	5400	5580	5760	5950	6140	6340	6530	6730	6940	7140
7	7350	7560	7780	8000	8220	8440	8670	8900	9140	9370
8	9610	9850	10100	10300	10600	10900	11100	11400	11700	12000
9	12300	12500	12800	13100	13400	13700	14000	14300	14700	15000
10	15300	15600	15900	16300	16600	16900	17300	17600	18000	18300
11	18700	19000	19400	19800	20100	20500	20900	21300	21600	22000
12	22400	22800	23200	23600	24000	24400	24800	25200	25700	26100
13	26500	26900	27400	27800	28300	28700	29100	29600	30100	30500
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
14	31000	31400	31900	32400	32900	33300	33800	34300	34800	35300
15	35800	36300	36800	37300	37800	38400	38900	39400	39900	40500
16	41000	41500	42000	42600	43100	43600	44100	44700	45200	45700
17	46300	46800	47400	47900	48500	49000	49600	50200	50700	51300
18	51900	52500	53000	53600	54200	54800	55400	56000	56600	57200
19	57800	58400	59000	59600	60300	60900	61500	62100	62800	63400
20	64000	64700	65300	66000	66600	67300	67900	68600	69300	69900
21	70600	71300	71900	72600	73300	74000	74700	75400	76100	76800
22	77500	78200	78900	79600	80300	81000	81700	82500	83200	83900
23	84700	85400	86100	86900	87600	88400	89100	89900	90600	91400
24	92200	92900	93700	94500	95300	96000	96800	97600	98400	99200
25	100000	101000	102000	103000	104000	105000	105000	106000	107000	108000
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
26	109000	110000	111000	112000	113000	114000	115000	116000	117000	118000
27	119000	120000	121000	122000	123000	124000	125000	126000	127000	128000
28	129000	130000	131000	132000	133000	134000	135000	136000	137000	138000
29	139000	140000	141000	142000	143000	144000	146000	147000	148000	149000
30	150000	151000	152000	154000	155000	156000	157000	158000	160000	161000
31	162000	163000	164000	166000	167000	168000	169000	171000	172000	173000
32	175000	176000	177000	178000	180000	181000	182000	184000	185000	186000
33	188000	189000	190000	192000	193000	194000	196000	197000	199000	200000
34	201000	203000	204000	206000	207000	208000	210000	211000	213000	214000
35	216000	217000	218000	220000	221000	223000	224000	226000	227000	229000
36	230000	232000	233000	235000	236000	238000	239000	241000	242000	244000
37	246000	247000	249000	250000	252000	253000	255000	257000	258000	260000
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
38	261000	263000	265000	266000	268000	270000	271000	273000	275000	276000
39	278000	280000	281000	283000	285000	286000	288000	290000	292000	293000
40	295000
