Smith - At Jedediah Smith

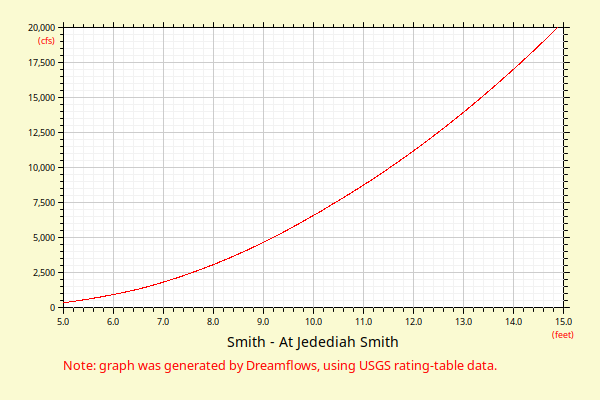

This rating table shows the relationship between gauge height and river flow for USGS gauge id 11532500, located on the Smith River at Jed Smith State Park, CA. Dreamflows generated the graph and table using USGS supplied rating table data. NOTE: The rating table below was published Nov 5, 2009 and was valid only at that time. The relationship between gauge height and river flow may change over time and therefore the older the data, the less reliable it is likely to be. The graph shows the range of data of primary interest to boaters, while the numerical listing gives the full range of available data.

Flow (in cfs) - last revised Nov 5, 2009
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
4 170
5 200 235 271 310 349 390 435 481 530 585
6 643 704 767 832 900 974 1050 1130 1210 1300
7 1390 1490 1590 1690 1800 1910 2020 2130 2250 2370
8 2500 2630 2760 2900 3030 3180 3320 3470 3620 3780
9 3930 4100 4260 4430 4600 4780 4950 5140 5320 5510
10 5700 5890 6090 6290 6490 6700 6900 7120 7330 7550
11 7770 8000 8230 8460 8690 8930 9170 9410 9660 9910
12 10200 10400 10700 10900 11200 11500 11800 12000 12300 12600
13 12900 13200 13500 13800 14100 14400 14700 15000 15300 15600
14 15900 16200 16600 16900 17200 17600 17900 18200 18600 18900
15 19300 19600 20000 20400 20700 21100 21500 21800 22200 22600
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
16 23000 23400 23800 24200 24600 25000 25400 25800 26200 26600
17 27000 27400 27900 28300 28700 29200 29600 30000 30500 30900
18 31400 31900 32300 32800 33200 33700 34200 34700 35200 35600
19 36100 36600 37100 37600 38100 38600 39100 39600 40200 40700
20 41200 41700 42300 42800 43300 43900 44400 45000 45500 46100
21 46600 47200 47700 48300 48900 49400 50100 50800 51500 52200
22 52900 53600 54300 55000 55700 56400 57100 57900 58600 59300
23 60100 60800 61600 62300 63100 63900 64700 65400 66200 67000
24 67800 68600 69400 70300 71100 71900 72700 73600 74400 75300
25 76100 77000 77900 78700 79600 80500 81400 82300 83200 84100
26 85000 85900 86800 87800 88700 89600 90600 91500 92500 93400
27 94400 95400 96300 97300 98300 99300 100000 101000 102000 103000
Height (feet) .0 .1 .2 .3 .4 .5 .6 .7 .8 .9
28 104000 105000 106000 107000 108000 110000 111000 112000 113000 114000
29 115000 116000 117000 118000 119000 120000 121000 123000 124000 125000
30 126000 127000 128000 129000 131000 132000 133000 134000 135000 136000
31 138000 139000 140000 141000 143000 144000 145000 146000 147000 149000
32 150000

	Flow (in cfs) - last revised Nov 5, 2009
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
4										170
5	200	235	271	310	349	390	435	481	530	585
6	643	704	767	832	900	974	1050	1130	1210	1300
7	1390	1490	1590	1690	1800	1910	2020	2130	2250	2370
8	2500	2630	2760	2900	3030	3180	3320	3470	3620	3780
9	3930	4100	4260	4430	4600	4780	4950	5140	5320	5510
10	5700	5890	6090	6290	6490	6700	6900	7120	7330	7550
11	7770	8000	8230	8460	8690	8930	9170	9410	9660	9910
12	10200	10400	10700	10900	11200	11500	11800	12000	12300	12600
13	12900	13200	13500	13800	14100	14400	14700	15000	15300	15600
14	15900	16200	16600	16900	17200	17600	17900	18200	18600	18900
15	19300	19600	20000	20400	20700	21100	21500	21800	22200	22600
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
16	23000	23400	23800	24200	24600	25000	25400	25800	26200	26600
17	27000	27400	27900	28300	28700	29200	29600	30000	30500	30900
18	31400	31900	32300	32800	33200	33700	34200	34700	35200	35600
19	36100	36600	37100	37600	38100	38600	39100	39600	40200	40700
20	41200	41700	42300	42800	43300	43900	44400	45000	45500	46100
21	46600	47200	47700	48300	48900	49400	50100	50800	51500	52200
22	52900	53600	54300	55000	55700	56400	57100	57900	58600	59300
23	60100	60800	61600	62300	63100	63900	64700	65400	66200	67000
24	67800	68600	69400	70300	71100	71900	72700	73600	74400	75300
25	76100	77000	77900	78700	79600	80500	81400	82300	83200	84100
26	85000	85900	86800	87800	88700	89600	90600	91500	92500	93400
27	94400	95400	96300	97300	98300	99300	100000	101000	102000	103000
Height (feet)	.0	.1	.2	.3	.4	.5	.6	.7	.8	.9
28	104000	105000	106000	107000	108000	110000	111000	112000	113000	114000
29	115000	116000	117000	118000	119000	120000	121000	123000	124000	125000
30	126000	127000	128000	129000	131000	132000	133000	134000	135000	136000
31	138000	139000	140000	141000	143000	144000	145000	146000	147000	149000
32	150000
